CISC3595: CPU Scheduling: Round-robin simulation

Write a C/C++ program which reads in a list of process names and integer times from stdin/cin and simulates round-robin CPU scheduling on the list. Name the source file assign2.cpp. The input to the program is a list of lines each consisting of a process name and an integer time, e.g.


ProcessA 4
ProcessB 10

Read the list (without prompting) until end of transmission, EOF(^d). You should read the list and represent it in a linked list data structure. You are allowed to use STL classes, BUT DO NOT USE a vector. You should use the alarm system call to schedule a timer interrupt every 3 seconds and sleep (or usleep) to simulate the process running. Use time remaining on the process for the call to sleep. It's easiest if the interrupt handler sets a flag. A process with remaining time will be awakened in the alarm handler. If the quantum is the same or less than remaining time, it will wake up without the alarm. Upon returning from either sleep or the interrupt handler, update the time left by subtracting 3 seconds or the time remaining, depending if interrupted or not. Write a message saying how much time it has left to execute, i.e.


ProcessA 1

If the time remaining is greater than 0, return it to the end of the queue. If the process has no time left to execute, you should write a message saying this i.e.


ProcessA Finished

and delete the process from the linked list. If there are no processes left to execute, write a message saying


No processes left

and terminate your program. Please following the specification EXACTLY.

When you finish your program, call it assign2.cpp and submit using the submitOS script. If you implement your program in multiple source files, you can submit both either together or separately using the script. Write a comment at the top of your code identifying your name, the date, the class and assignment, and a title and short description for the program.

[NOTE: If this is your first submission: Configure your environment by running ~harazduk/bin/configOS from your home directory. This will create a directory OSGradedLabs for me to place graded programs. It will also change your path to include my bin directory. You will then be able to use my script submitOS on your source file to copy it into the submissions directory. You will have to run bash or logout and login for it to take affect.]

GRADING PROGRAMS

I will run your program through the compiler, if it doesn’t compile you will immediately lose 10% of the grade. If I can’t fix it easily, that number goes up.

If your program compiles I will run it on test files that I have written and I will use “diff” to compare your output with mine. SO please pay attention to the exact specifications for input and output. If your output does not match, then you will lose 5% of the grade for each difference.

I will check your source code to make sure you are using the alarm system call and are using linked lists and any other required aspects.

I will review your programming style and content, this will be worth 10% of the grade.

Like all Unix commands, the g++ command has many options that you can use to control its behavior. You can type man g++ to view a very long list of all options and their descriptions. For now, please familiarize yourself with the following options to g++ command:

-o file: store the output to the given file, instead of the default file name. For example, if you type:
```
	g++ assign2.cpp -o assign2
```

Running the program


[harazduk@storm assign2]$ assign2

ProcessA 9
ProcessB 5
ProcessC 2
ProcessD 8
ProcessE 11
ProcessF 3
ProcessG 7
ProcessH 4
^d

ProcessA 6
ProcessB 2
ProcessC Finished
ProcessD 5
ProcessE 8
ProcessF Finished
ProcessG 4
ProcessH 1
ProcessA 3
ProcessB Finished
ProcessD 2
ProcessE 5
ProcessG 1
ProcessH Finished
ProcessA Finished
ProcessD Finished
ProcessE 2
ProcessG Finished
ProcessE Finished
No processes left
[harazduk@storm assign2]$

Compilation Errors

If you experience compilation errors because alarm, signal, are unrecognized, you probably have left out an include file. Feel free to google or use the man command (i.e. man 3 exec) to see what include files are needed.


#include <iostream>
#include <list>
#include <stdio.h>
#include <unistd.h>
#include <signal.h>
#include <string>

6. OpenMP in class project

We will take a look at OpenMP in class today by looking at the omp-hands-on-tutorial.pdf. Using any of the examples in the slides or any problem that you want to try to parallelize, please create a file openmp.cpp with your example. Please make sure that it compiles on storm with the following compile line:

   g++ openmp.cpp -fopenmp -o openmp

OpenMP is a set of compiler directives that generate the code for threads and thread management making it easier to parallelize programs. To use openMP directives, you must include omp.h in your program.


#include <omp.h>

All directives begin with the prefix directive '#' starting in column 1.


#pragma omp

The deck linked above is a tutorial. What I would like the class to do is to play with it a little. Two programs are given below: one uses the parallel for loop feature and the other uses some of the API to print the thread id in each thread and the master prints out the number of threads. Pick one or both or some other problem and type it in, build it and test it. If you are interested, start a pet project and try to get it to work. If not, fool around with the package a bit, then submit it. As with the linux.txt file, every student submission will receive full credit. An exceptional job will receive extra credit.

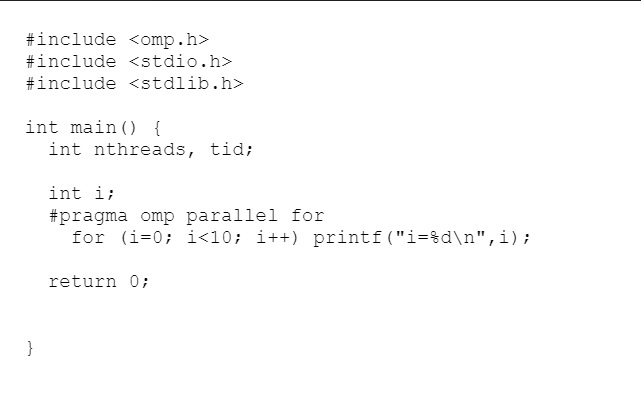

Example 1

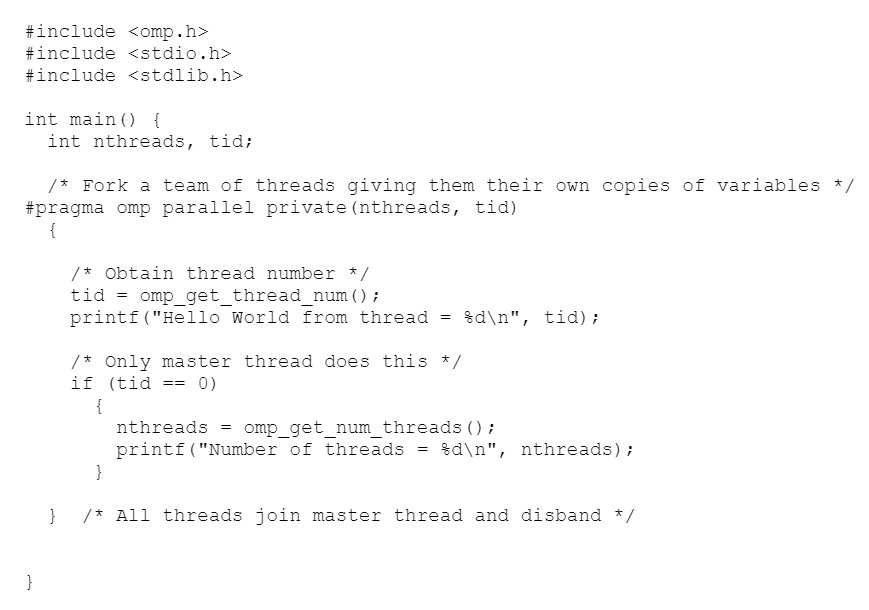

Example 2

7. Submit your programs (assign2.cpp, openmp.cpp)

The following submission method only works from storm server. Write me (jharazduk@fordham.edu) if you encounter any problem; include in your email the error message you received. To submit a file named “assign2.cpp” using command:

	submitOS assign2.cpp
	submitOS openmp.cpp

You can then run command

	verifyOS assign2.cpp
	verifyOS openmp.cpp

To retrieve the file and verify that if the file has been submitted successfully. It should display the file you submitted back to you.

If you want to submit openmp.cpp and assign2.cpp at the same time, use the command:

	submitOS assign2.cpp openmp.cpp

Unfortunately, verifyOS only works on one file at a time.

	verifyOS assign2.cpp
	verifyOS openmp.cpp

NOTE: There are two errors that you may encounter. The first you can fix yourself: submitOS: command not found. Either you did not run ~harazduk/bin/configOS or you did but the change did not take affect. If OSGradedLabs directory exists in your home directory, then you it's the latter. Run bash on the command line alone and try submitOS again.

	bash

If you encounter another error, send me an email with the error and I will fix it for you. You have finished assign2.
